An electrocardiogram, ECG (EKG), is a test used to measure the rate and regularity of heartbeats, as well as the size and position of the chambers, the presence of any damage to the heart, and the effects of drugs or devices used to regulate the heart.
The ECG signal strip is a graphic tracing of the electrical activity of the heart. It measures the length of time it takes for the initial impulse to fire at the Sinus Node and then ends in the contracting of the Ventricles.
The first upward pulse of the EKG signal, the P wave, is formed when the atria (the two upper chambers of the heart) contract to pump blood into the ventricles. In you will see many “fibrillation” beats instead of one P wave. A characteristic sign of is the absence of a P wave in the EKG signal.
Ecg App And Irregular Heart Rhythm Notification Available Today On Apple Watch
The next large upward spike segment, the QRS Complex, is formed when the ventricles (the two lower chambers of the heart) are contracting to pump out blood. The normal duration (interval) of the QRS complex is between 0.08 and 0.10 seconds.
The next section, the ST segment, measures the end of the contraction of the ventricles to the beginning of the rest period before the ventricles begin to contract for the next beat.
These pulses are caused by the movement of positively and negatively charged ions (sodium, calcium, potassium, magnesium) through proteins called ion channel receptors. (For an excellent discussion and explanation of the science behind the movement of these chemical ions, see Restart Your Heart by Dr. Aseem Desai, p. 21.)
The Electrocardiogram (ekg Or Ecg): Animation And Diagram
In the case of Atrial Fibrillation, the consistent P waves are replaced by fibrillatory waves, which vary in amplitude, shape, and timing (compare the two illustrations below).
The output of an ECG recorder is a graph (or sometimes several graphs, representing each of the leads) with time represented on the x-axis and voltage represented on the y-axis. A dedicated ECG machine would usually print onto graph paper which has a background pattern of 1mm squares (often in red or green), with bold divisions every 5 mm in both vertical and horizontal directions.
Interpreting a ECG strip involves counting the squares of the tracing. For example, by counting the squares of a heart in Normal Sinus Rhythm, you can calculate the heart rate.
Image: Animation Of A Normal Ecg Wave

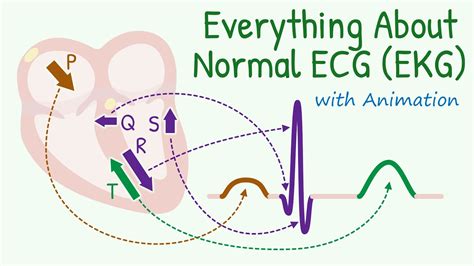

Animation with narration about the heart’s conduction system. Schematic diagram and explanation of normal sinus rhythm for a human heart as seen on ECG (3:34 min.) Click on image to go to the video page.
